Step 4 – Configuration

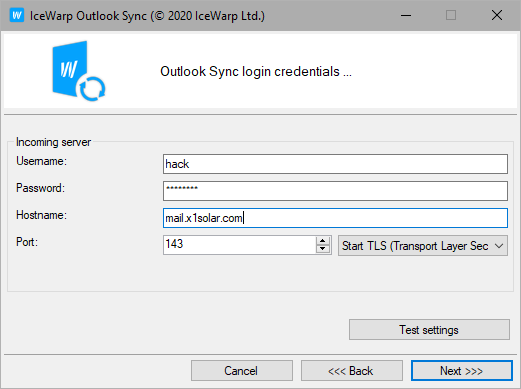

Figure. Incoming server properties (Profile Manager page).

Username is your login; usually it is the “part” before @, e.g. francis@icewarpdemo.com ‘s username could be “francis”. But if your server is configured to login with email address then use francis@icewarpdemo.com as your username. If in doubt consult this situation with your administrator.
Password is your secret key to access your account.
Hostname is the address of your server; it can be a hostname or IP address.
Port is the IMAP TCP port configured on your server. Default value is 143.
Line security defines whether all communication between Outlook Sync and IceWarp server will be encrypted or unencrypted (plain). Unsecured line does not encrypt any data, generally this option is not recommended.

For additional description you may consult chapter “Step 6 – Incoming and Outgoing servers configuration”.

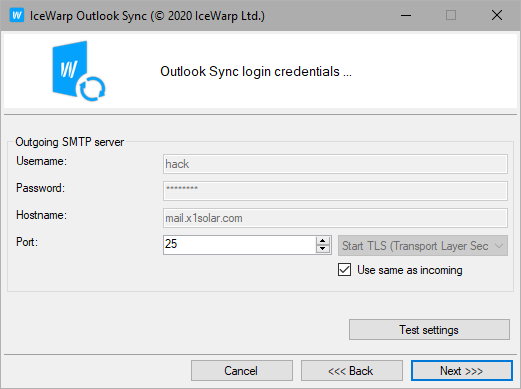

Figure. Outgoing server properties (Profile Manager page).

Username is your login; usually it is the “part” before @, e.g. francis@icewarpdemo.com ‘s username could be “francis”. But if your server is configured to login with email address then use francis@icewarpdemo.com as your username. If in doubt consult this situation with your administrator.
Password is your secret key to access your account.
Hostname is the address of your server; it can be a hostname or IP address.
Port is the IMAP TCP port configured on your server. Default value is 25.
Line security defines whether all communication between Outlook Sync and IceWarp server will be encrypted or unencrypted (plain). Unsecured line does not encrypt any data, generally this option is not recommended.

For additional description you may consult chapter “Step 7 – Outgoing server configuration”.

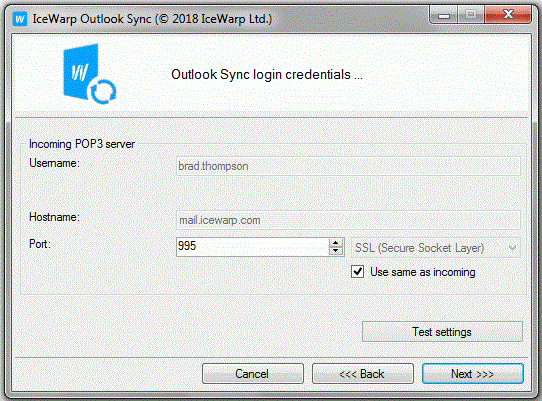

Figure. Incoming POP3 server properties (Profile Manager page).

Username is your login; usually it is the “part” before @, e.g. francis@icewarpdemo.com ‘s username could be “francis”. But if your server is configured to login with email address then use francis@icewarpdemo.com as your username. If in doubt consult this situation with your administrator.
Hostname is the address of your server; it can be a hostname or IP address.
Port is the IMAP TCP port configured on your server. Default value is 110 for plain, or 995 for secured line.
Line security defines whether all communication between Outlook Sync and IceWarp server will be encrypted or unencrypted (plain). Unsecured line does not encrypt any data, generally this option is not recommended.
