Statistics

This tab shows complete statistics about the services you choose them from the dropdown on the top, the amount of data they transferred, the number of connections, etc. Most of the items are self-explanatory.

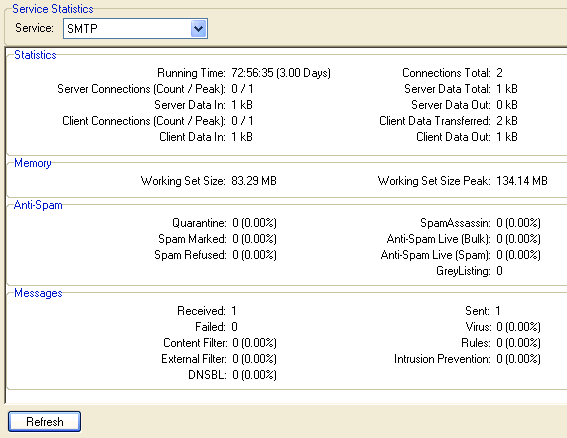

Figure. Service Statistics for SMTP.

Item	Description
Server Connections	The connections, when IceWarp Server acts really as the server side in the Client/Server architecture. e.g.: when a user connects to SMTP server and send a message.
Client Connections	The connections, when IceWarp Server acts as the client side in the Client/Server architecture. e.g.: when the message is already received from a user and it is addressed to external user, IceWarp Server establishes a connection to another server and sends the message (in this case, IceWarp Server acts as client).
Server Data Transferred	Data transferred within Server Connections.
Client Data Transferred	Data transferred within Client Connections.
Antispam/Messages	Numbers of messages positively evaluated or caught by appropriate feature (such as Content Filters, Antispam System, etc.)

snmp-mib.txt File

The current version of this file is available in <InstallationRoot>\doc\snmp-mib.txt.

Counter Increase

Counter for one filter is increased once per session – i. e. multiple recipients (within one session) filtered by one type of a filter do not cause multiple counting.

But, multiple recipients filtered by different filters cause counter increase of all applied filters.

e.g.: we have two recipients, for one recipient, the message is evaluated as spam, for the second one, it is rejected. After this session, two counters are increased.

SpamAssassin

This counter counts number of messages where SpamAssassin got score different from zero. It does not count "spam messages", because almost all messages get non zero score. This counter in fact means how many times SpamAssassin was applied.
